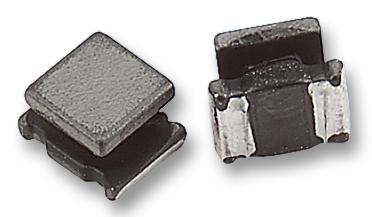

LQH32MN220J23L Inductor, 22UH, 1210 Case Murata

MURATAUGS :LQH32MN220J23L Code de commande:9522069

Prix:
Prix ​​promotionnel€0,44

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1960 unité)

Documents et téléchargements

description

MURATA - LQH32MN220J23L - Wirewound Inductor, 22 µH, 2.8 ohm, 14 MHz, 150 mA, 1210 [3225 Metric], LQH32MN_23

  • Inductance: 22µH
  • Product Range: LQH32MN_23 Series
  • DC Current Rating: 150mA
  • High Frequency Inductor Case: 1210 [3225 Metric]
  • Inductor Construction: Wirewound
  • DC Resistance Max: 2.8ohm
  • Inductance Tolerance: ± 5%
  • Self Resonant Frequency Min: 14MHz
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 2mm
  • External Length / Height: 3.2mm
  • External Width: 2.5mm
  • Inductor Case Style: 1210 [3225 Metric]
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
