description

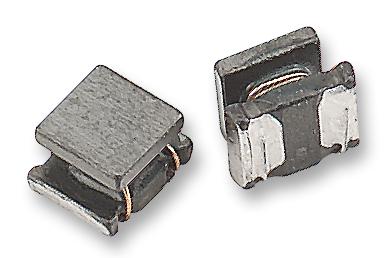

MURATA - LQH32CNR15M33L - Wirewound Inductor, 150 nH, 0.028 ohm, 400 MHz, 1.45 A, 1210 [3225 Metric], LQH
- Inductance: 150nH
- Product Range: -
- DC Current Rating: 1.45A
- High Frequency Inductor Case: 1210 [3225 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 0.028ohm
- Inductance Tolerance: ± 20%
- Self Resonant Frequency Min: 400MHz
- SVHC: No SVHC (07-Jul-2017)
- External Depth: 2mm
- External Length / Height: 3.2mm
- External Width: 2.5mm
- Inductor Case Style: 1210 [3225 Metric]
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
