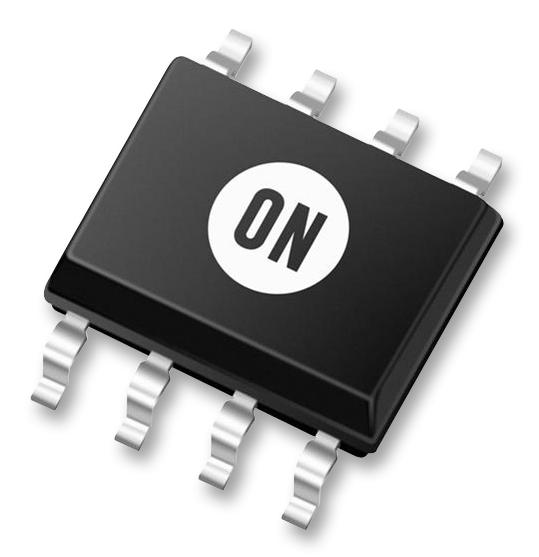

ONSEMI - LP2951CDMR2G - LDO Voltage Regulator, Adjustable, 2 V to 30 V in, 450 mV drop, 1.25 V to 29 V/100 mA out, Micro-8
- Output Type: Adjustable
- Input Voltage Min: 2V
- Input Voltage Max: 30V
- Fixed Output Voltage Nom.: 5V
- Adjustable Output Voltage Min: 1.25V
- Adjustable Output Voltage Max: 29V
- Output Current: 100mA
- Dropout Voltage Vdo: 450mV
- LDO Regulator Case Style: Micro
- No. of Pins: 8Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: Adj 100mA LDO Voltage Regulators
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
