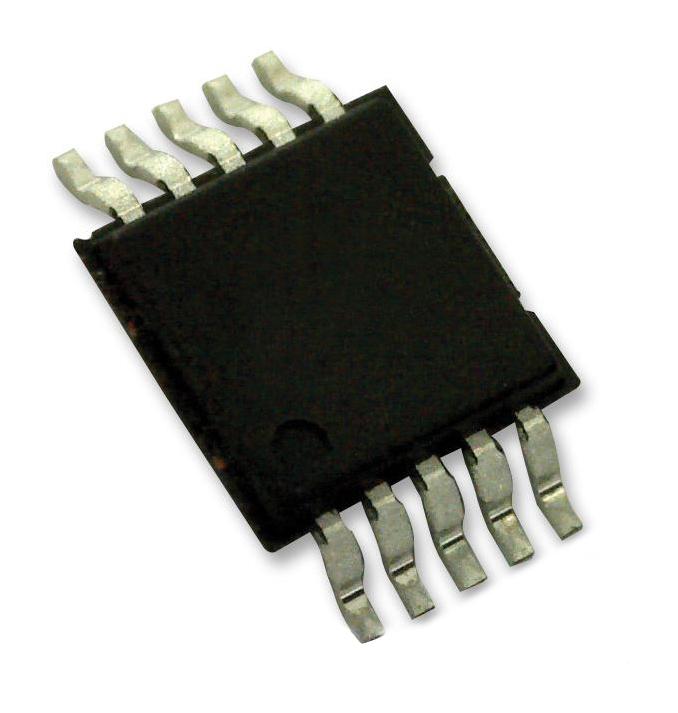

TEXAS INSTRUMENTS - LM5106MM/NOPB - Dual Half Bridge Driver, 8V-14V Supply, 1.8A Out, 32ns Delay, VSSOP-10
- Driver Configuration: Half Bridge
- Peak Output Current: 1.8A
- Supply Voltage Min: 8V
- Supply Voltage Max: 14V
- Driver Case Style: VSSOP
- No. of Pins: 10Pins
- Input Delay: 115ns
- Output Delay: 32ns
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 5106
- Device Type: Half Bridge
- I / O Delay: 570ns
- Module Configuration: Half Bridge
- No. of Outputs: 2Outputs
- Operating Temperature Range: -40°C to +125°C
- Output Current: 1.2A
- Output Sink Current Min: 1.8mA
- Output Source Current Min: 1.2mA
- Output Voltage: 18.3V
- Output Voltage Max: 100V
- Supply Voltage Range: 8V to 14V
- Termination Type: Surface Mount Device
