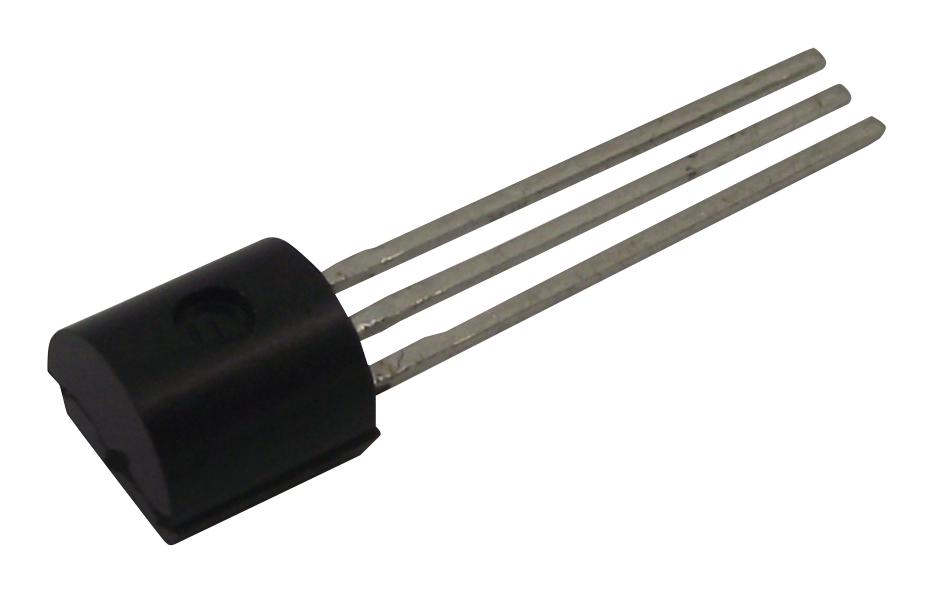

ONSEMI - LM385BZ-1.2G - Voltage Reference, Micropower, Shunt - Fixed, LM385B Series, 1.235V, TO-226AA-3
- Voltage Reference Type: Shunt - Fixed
- Product Range: LM385B Series
- Reference Voltage: 1.235V
- Initial Accuracy: 1%
- Temperature Coefficient: ± 80ppm/°C
- Voltage Reference Case Style: TO-92
- No. of Pins: 3Pins
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- Base Number: 385
- Device Marking: LM385BZ-1.2G
- Junction Temperature Tj Max: 70°C
- Junction Temperature Tj Min: 0°C
- Logic Function Number: 385
- Operating Temperature Range: 0°C to +70°C
- Reference Volt Tolerance ±%: 1%
- Reference Volts: 1.235V
- Temperature Coeff. +: 80ppm/°C
- Topology: Shunt
