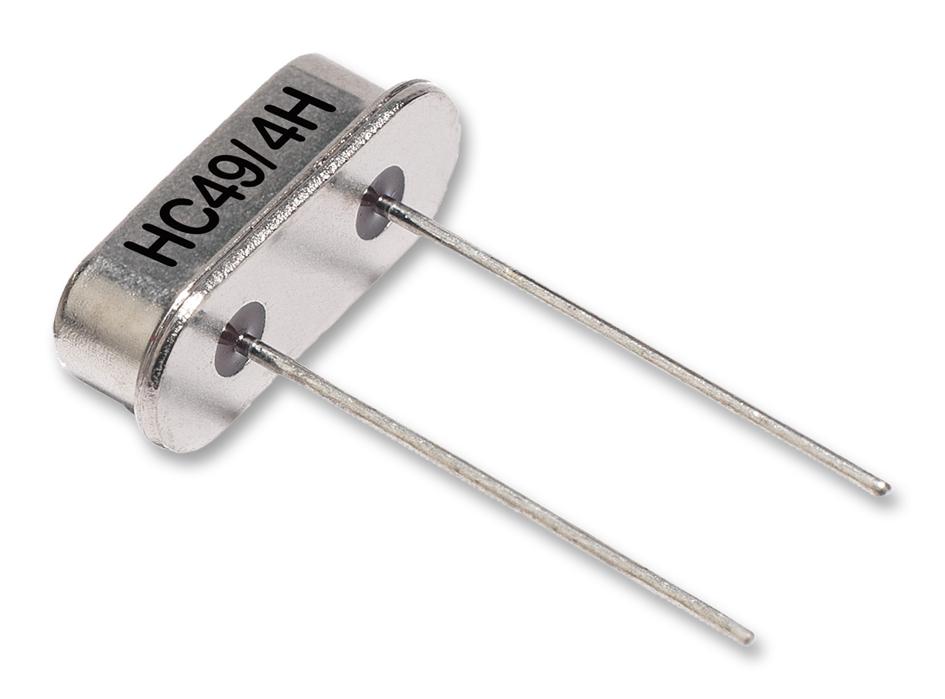

IQD FREQUENCY PRODUCTS - LFXTAL003063 - Crystal, 3.579545 MHz, Through Hole, 11mm x 4.7mm, 50 ppm, 20 pF, 30 ppm, HC-49/4H
- Frequency Nom: 3.579545MHz
- Crystal Case: Through Hole, 11mm x 4.7mm
- Frequency Stability + / -: 50ppm
- Load Capacitance: 20pF
- Frequency Tolerance + / -: 30ppm
- Product Range: HC-49/4H Series
- Operating Temperature Min: -20°C
- Operating Temperature Max: 70°C
- SVHC: No SVHC (15-Jan-2018)
- Accuracy: ± 30ppm
- Crystal Mounting Type: Through Hole
- Frequency: 3.579545MHz
- Frequency Accuracy + @: 30ppm
- Frequency Accuracy - @: 30ppm
- Frequency Stability: ± 50ppm
- No. of Pins: 2Pins
- Operating Temperature Range: -20°C to +70°C
- Output Frequency: 3.579545MHz
- Temperature Stability + @: 50ppm
- Temperature Stability - @: 50ppm
- Temperature Stabilty: ± 50ppm
