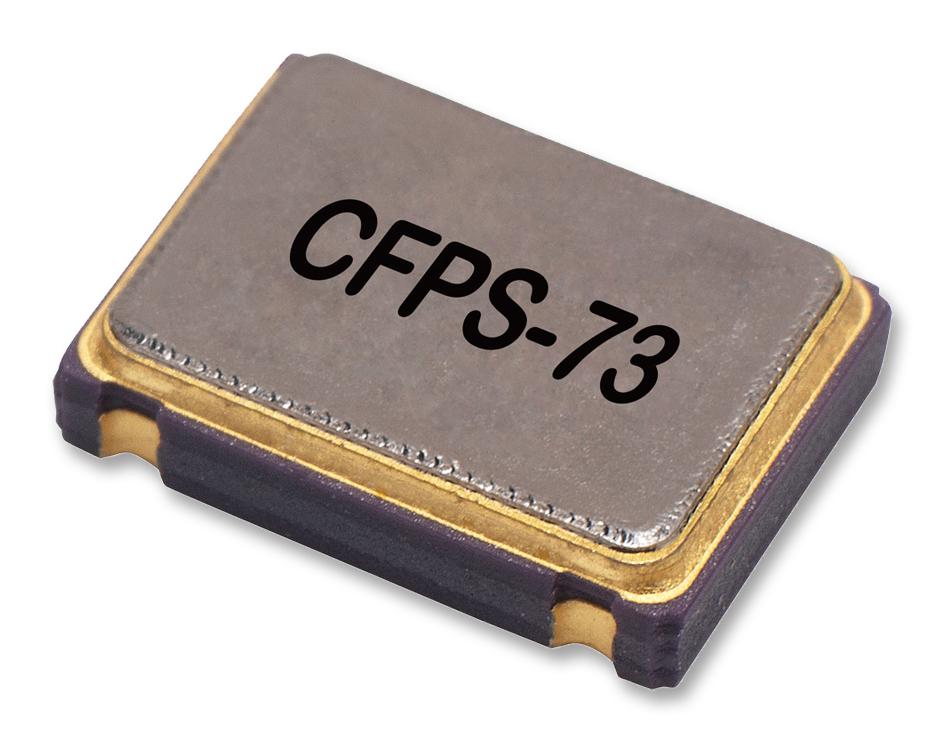

IQD FREQUENCY PRODUCTS - LFSPXO018538 - Oscillator, Crystal, 14.31818 MHz, 50 ppm, SMD, 7mm x 5mm, 3.3 V, CFPS-73 Series
- Frequency Nom: 14.31818MHz
- Frequency Stability + / -: 50ppm
- Oscillator Case: SMD, 7mm x 5mm
- Supply Voltage Nom: 3.3V
- Product Range: CFPS-73 Series
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Oscillator Output Compatibility: HCMOS
- SVHC: No SVHC (15-Jan-2018)
- Accuracy: ± 50ppm
- Crystal Case: CFPS-73
- Duty Cycle (%): 55%
- Duty Cycle Lower Limit: 45%
- Duty Cycle Upper Limit: 55%
- Fall Time tf: 6ns
- Frequency: 14.318MHz
- Frequency Accuracy + @: 50ppm
- Frequency Accuracy - @: 50ppm
- Frequency Stability: ± 50ppm
- Load Capacitance: 15pF
- No. of Pins: 4Pins
- Operating Temperature Range: 0°C to +70°C
- Output Drive Level: HCMOS
- Output Frequency: 14.31818MHz
- Resonator Case: SMD
- Rise Time: 6ns
- Supply Current Max: 15mA
- Supply Voltage Max: 3.6V
- Supply Voltage Min: 3V
- Temperature Stability + @: 50ppm
- Temperature Stability - @: 50ppm
- Temperature Stabilty: ± 50ppm
- Type: SPXO
