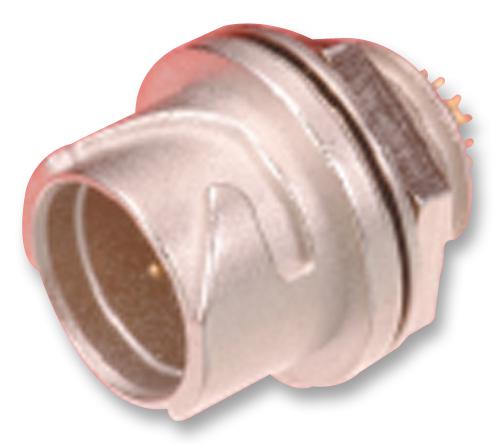

HIROSE(HRS) - LF07WBR-6S - Circular Connector, IP67, IP68, LF Series, Panel Mount Receptacle, 6 Contacts, Solder Socket
- Product Range: LF Series
- Circular Connector Shell Style: Panel Mount Receptacle
- No. of Contacts: 6Contacts
- Circular Contact Type: Solder Socket
- Coupling Style: -
- Connector Body Material: Zinc Alloy Body
- Connector Body Plating: -
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Cable Diameter Max: 5mm
- Connector Insert Type: 7-6
- Connector Mounting: Panel Mount
- Connector Shell Size: 7
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Gold Plated Contacts
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 2A
- Gender: Receptacle
- Insert Arrangement: 7-6
- No. of Mating Cycles: 1000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Voltage Rating VAC: 30V
