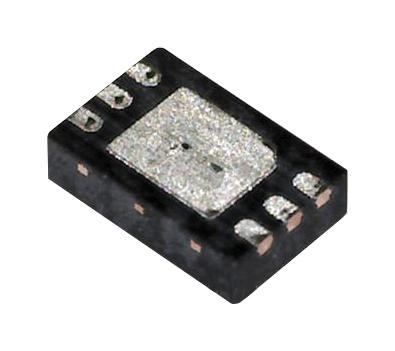

STMICROELECTRONICS - LD39100PU25RY - Fixed LDO Voltage Regulator, AEC-Q100, 1.5V to 5.5V, 200mV drop, 2.5V/1A out, DFN-6
- Output Type: Fixed
- Input Voltage Min: 1.5V
- Input Voltage Max: 5.5V
- Fixed Output Voltage Nom.: 2.5V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 1A
- Dropout Voltage Vdo: 200mV
- LDO Regulator Case Style: DFN
- No. of Pins: 6Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 200mV 1A LDO Voltage Regulators
- Automotive Qualification Standard: AEC-Q100
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (27-Jun-2018)
