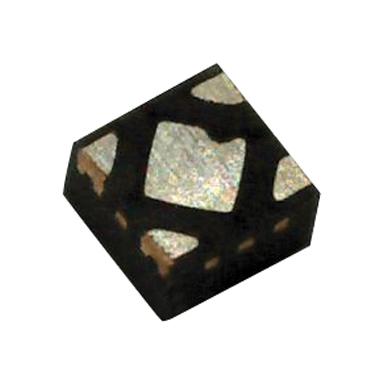

STMICROELECTRONICS - LD39020DTPU33R - Fixed LDO Voltage Regulator, 1.5V to 5.5V, 200mV Dropout, 3.3Vout, 200mAout, DFN-4
- Output Type: Fixed
- Input Voltage Min: 1.5V
- Input Voltage Max: 5.5V
- Fixed Output Voltage Nom.: 3.3V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 200mA
- Dropout Voltage Vdo: 200mV
- LDO Regulator Case Style: DFN
- No. of Pins: 4Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 3.3V 200mA LDO Voltage Regulators
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (17-Dec-2015)
- Output Voltage Nom.: 3.3V
