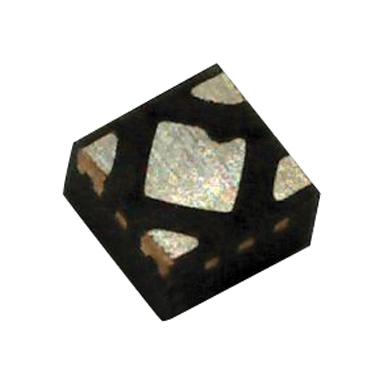

STMICROELECTRONICS - LD39020ATPU32R - Fixed LDO Voltage Regulator, 1.5 V to 5.5 V input, 200 mV Dropout, 3.2 V / 200 mA out, DFN-4
- Output Type: Fixed
- Input Voltage Min: 1.5V
- Input Voltage Max: 5.5V
- Fixed Output Voltage Nom.: 3.2V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 200mA
- Dropout Voltage Vdo: 200mV
- LDO Regulator Case Style: DFN
- No. of Pins: 4Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 3.2V 200mA LDO Voltage Regulators
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (07-Jul-2017)
