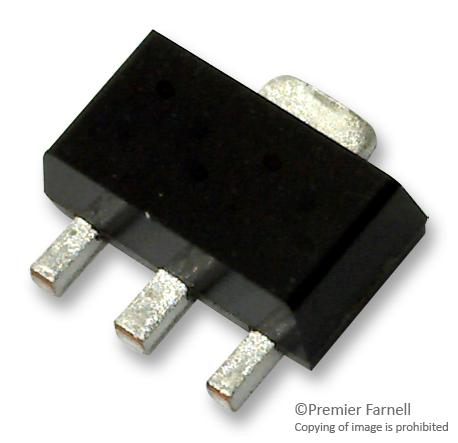

STMICROELECTRONICS - LD2981ABU50TR - Fixed LDO Voltage Regulator, 2.5V to 16V, 180mV Dropout, 5Vout, 100mAout, SOT-89-3
- Output Type: Fixed
- Input Voltage Min: 2.5V
- Input Voltage Max: 16V
- Fixed Output Voltage Nom.: 5V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 100mA
- Dropout Voltage Vdo: 180mV
- LDO Regulator Case Style: SOT-89
- No. of Pins: 3Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 5V 100mA LDO Voltage Regulators
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Output Voltage Nom.: 5V
