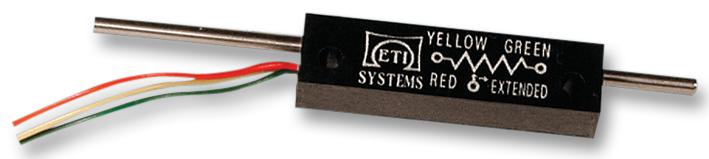

ETI SYSTEMS - LCP8S-10-5K - Linear Motion Potentiometer, 5 kohm, ± 15%, 200 mW, LCP8, Wire Leaded
- Track Resistance: 5kohm
- Power Rating: 200mW
- Resistance Tolerance: ± 15%
- Product Range: LCP8 Series
- Track Taper: Linear
- Temperature Coefficient: ± 400ppm/°C
- SVHC: No SVHC (07-Jul-2017)
- Adjustment Type: Slide
- External Depth: 8.18mm
- External Length / Height: 31.99mm
- External Width: 7.29mm
- Operating Temperature Max: 105°C
- Operating Temperature Min: -30°C
- Operating Temperature Range: -30°C to +105°C
- Resistor Element Material: Conductive Plastic
- Temperature Coeff. +: 400ppm/°C
- Temperature Coeff. -: 400ppm/°C
- Termination Type: Wire Leaded
- Tolerance +: 15%
- Tolerance -: 15%
