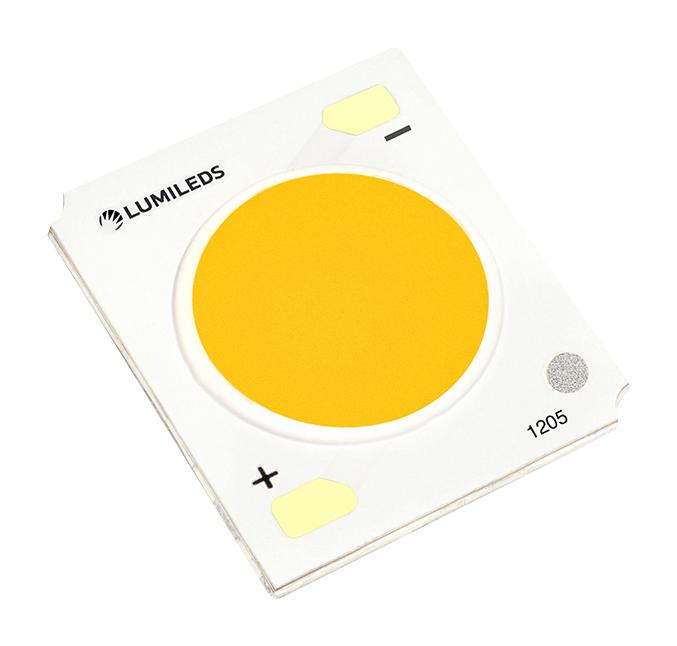

LUMILEDS - L2C5-50801205E1300 - LED, Cool White, 80 CRI Rating, 144 lm/W, 3028 lm, 600 mA, 115 °, 5000 K, SMD-2, Round & Flat Top
- COB Colour: Cool White
- Color Rendering Index Max: 80
- Power Rating: -
- Luminous Flux @ Test: 3028lm
- Forward Current @ Test: 600mA
- Viewing Angle: 115°
- Forward Voltage VF Typ: 35V
- Nominal CCT (K): 5000 K
- COB Length: 24mm
- COB Width: 20mm
- Opto Case Style: SMD-2, No Lead
- Lumens / Watt @ Current Test: 144lm/W
- Light Emitting Surface: 13mm
- Lens Type: -
- Lens Shape: Round with Flat Top
- Height: 1.5mm
- Product Range: L2C5 Series
- SVHC: No SVHC (07-Jul-2017)
- CCT: 5000K
- Forward Current If Max: 1.2A
- Forward Voltage @ Test: 35V
- LED Colour: Cool White
- Power @ Test: 21W
