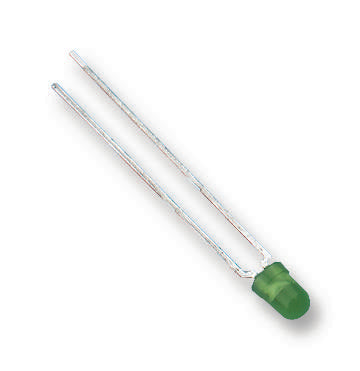

LED TECHNOLOGY - L02R3000F1 - LED, Green, Through Hole, T-1 (3mm), 20 mA, 2.1 V, 567 nm
- LED Colour: Green
 - LED Mounting: Through Hole
 - LED Case Size: T-1 (3mm)
 - Forward Current If: 20mA
 - Forward Voltage: 2.1V
 - Wavelength Typ: 567nm
 - Luminous Intensity: 3.7mcd
 - Viewing Angle: 74°
 - Lens Shape: Round
 - Product Range: LXXR3000FM Series
 - Automotive Qualification Standard: -
 - MSL: -
 - SVHC: No SVHC (15-Jun-2015)
 - Bulb Size: T-1 (3mm)
 - Current If Luminous Intensity: 20mA
 - Dominant Wavelength: 567nm
 - External Diameter: 3.1mm
 - External Length / Height: 5.08mm
 - Forward Current If Max: 20mA
 - Forward Voltage VF Max: 2.1V
 - LED / Lamp Size: 3mm / T-1
 - LED Type: Standard
 - Lead Cross-section Depth: 0.5mm
 - Lead Cross-section Width: 0.5mm
 - Lead Length: 12.7mm
 - Lead Spacing: 2.29mm
 - Luminous Intensity Typ: 3.7mcd
 - No. of Pins: 2Pins
 - Operating Temperature Max: 85°C
 - Operating Temperature Min: -25°C
 - Operating Temperature Range: -25°C to +85°C
 - PIV Max: 5V
 - Peak Forward Current: 25mA
 - Peak Wavelength: 567nm
 - Voltage Vf Typ: 2.1V
