description

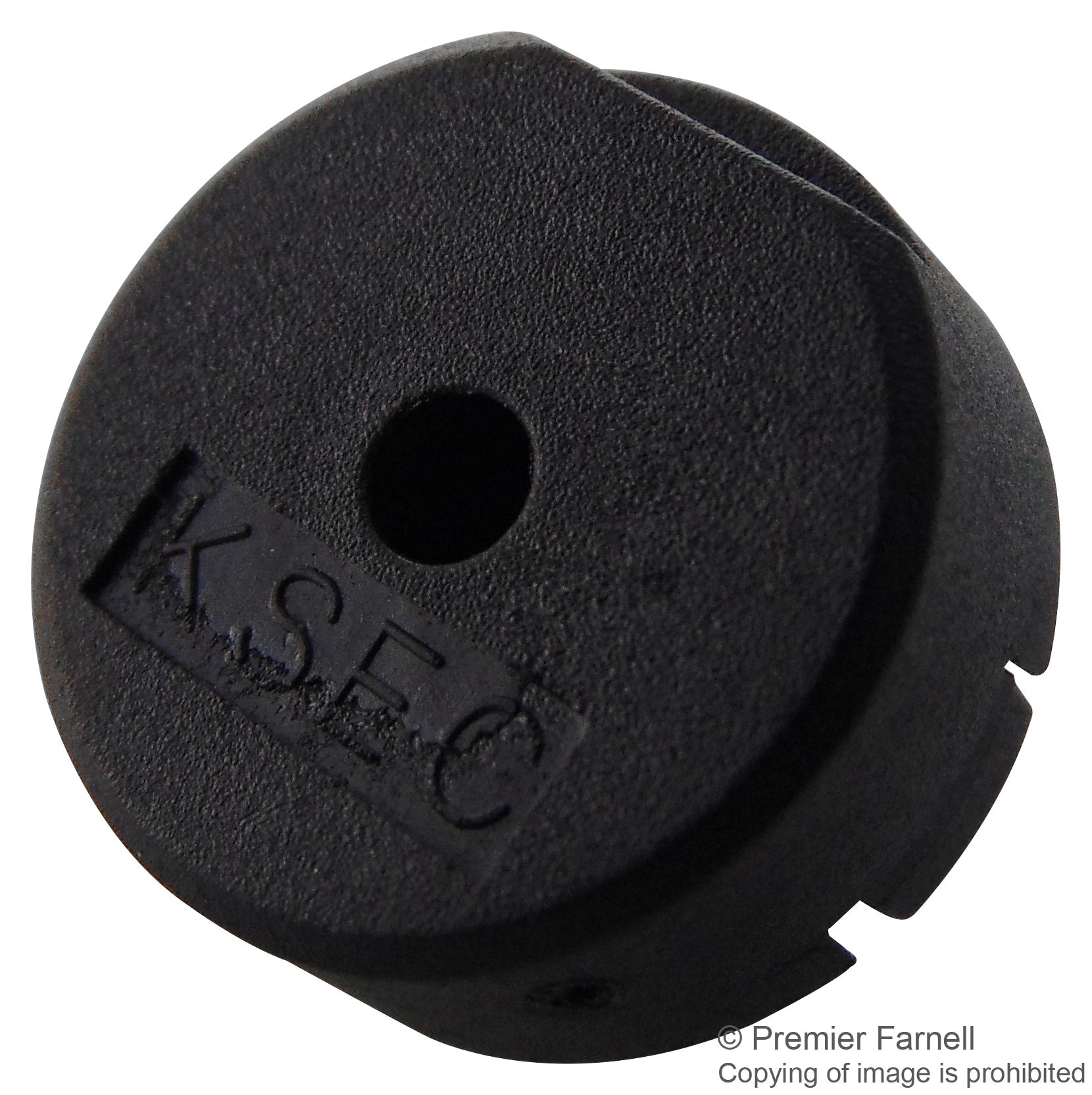

KINGSTATE - KPEG169 - Transducer, Piezo, PCB, Buzzer, 30 V, 7 mA, 80 dB
- Transducer Function: Buzzer
- Tones: -
- Supply Voltage Min: -
- Supply Voltage Max: 30V
- Operating Current Max: 7mA
- Sound Level SPL: 80dB
- Sound Level Distance: 10cm
- Resonant Frequency: -
- Product Range: -
- SVHC: No SVHC (20-Jun-2016)
- Capacitance: 8500pF
- Capacitance Max: 11.05nF
- Current Consumption: 7mA
- Current Rating: 7mA
- External Diameter: 14mm
- External Height: 6.7mm
- External Length / Height: 6.7mm
- Height: 6.7mm
- Material: PBT + 10% Glass (Black)
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Pin Length: 4mm
- Supply Voltage AC Max: 30V
- Weight: 1g
