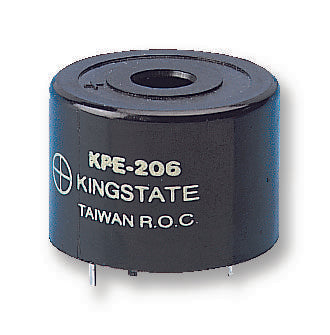

KINGSTATE - KPEG-206 - Transducer, Piezo, Buzzer, Buzzer, Continuous, 3 V, 20 V, 15 mA, 85 dB
- Transducer Function: Buzzer
- Tones: Continuous
- Supply Voltage Min: 3V
- Supply Voltage Max: 20V
- Operating Current Max: 15mA
- Sound Level SPL: 85dB
- Sound Level Distance: 30cm
- Resonant Frequency: 3.8kHz
- Product Range: -
- SVHC: No SVHC (20-Jun-2016)
- Colour: Black
- Current Consumption: 15mA
- Current Rating: 15mA
- Device Type: Piezo Alarm
- External Diameter: 24mm
- External Height: 17.2mm
- External Length / Height: 17.2mm
- Fixing Centres: 15mm
- Height: 17.2mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Pin Diameter: 0.8mm
- Pulsing Frequency: 3.8kHz
- Supply Voltage: 12V
- Supply Voltage DC Max: 20V
- Supply Voltage DC Min: 3V
- Weight: 4g
