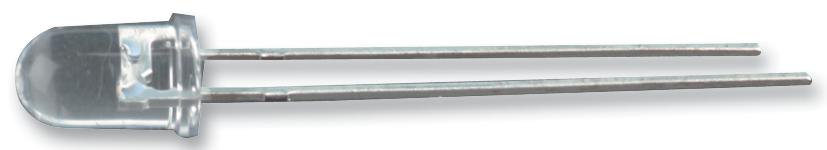

KNOWLEDGE-ON - KEL5002A-A - Infrared Emitter, 940 nm, 10 °, T-1 3/4 (5mm), 60 mW/Sr
- Peak Wavelength: 940nm
- Angle of Half Intensity: 10°
- Diode Case Style: T-1 3/4 (5mm)
- Radiant Intensity (Ie): 60mW/Sr
- Rise Time: -
- Fall Time tf: -
- Forward Current If(AV): 100mA
- Forward Voltage VF Max: 1.4V
- Operating Temperature Min: -25°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- Product Range: -
- MSL: -
- SVHC: No SVHC (07-Jul-2017)
- Angle of Half Sensitivity ±: 10°
- External Diameter: 5.7mm
- External Length / Height: 8.7mm
- Head Diameter: 5mm
- LED / Lamp Size: 5mm / T1.3/4
- Lead Length: 24mm
- No. of Pins: 2Pins
- Operating Temperature Range: -25°C to +85°C
- Pitch Spacing: 2.5mm
- Reverse Leakage Current Max: 10µA
- Turn Off Time: 13ns
- Turn On Time: 25ns
- Viewing Angle: 10°
- Voltage Vf Typ: 1.4V
- Wavelength Typ: 940nm
