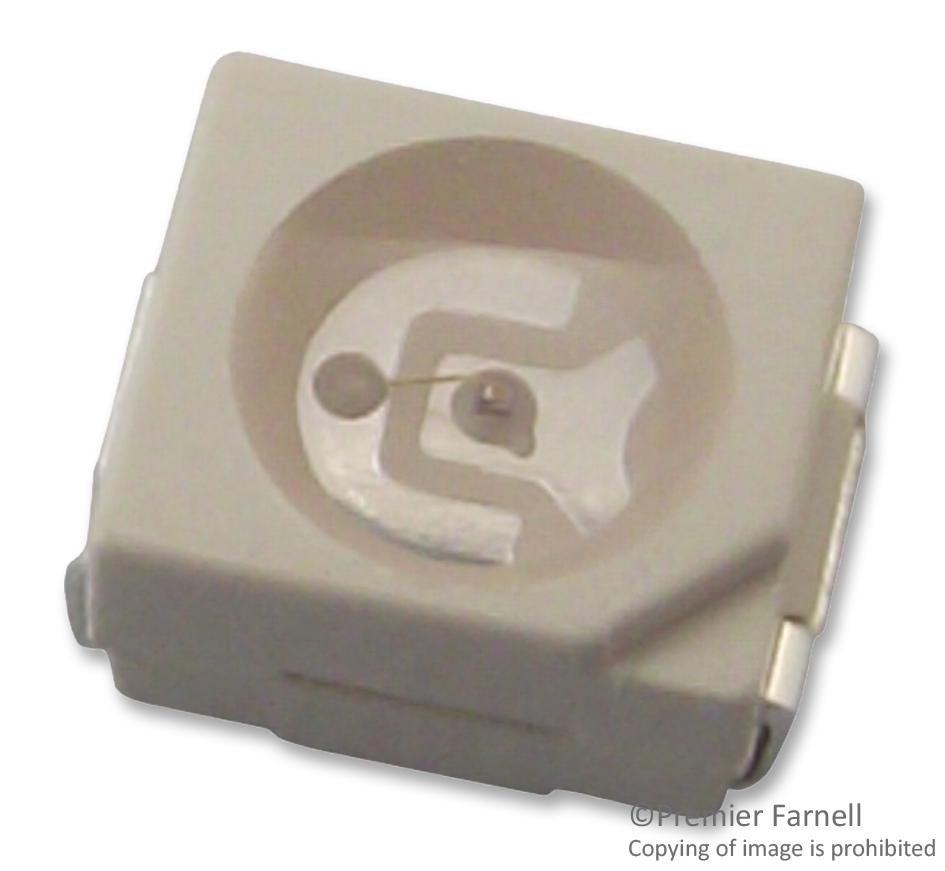

KINGBRIGHT - KA-3528YC - LED, Yellow, SMD, 3.5mm x 2.8mm, 20 mA, 2.1 V, 588 nm
- LED Colour: Yellow
 - LED Mounting: SMD
 - LED Case Size: 3.5mm x 2.8mm
 - Forward Current If: 20mA
 - Forward Voltage: 2.1V
 - Wavelength Typ: 588nm
 - Luminous Intensity: 20mcd
 - Viewing Angle: 120°
 - Lens Shape: Round
 - Product Range: -
 - Automotive Qualification Standard: -
 - MSL: MSL 4 - 72 hours
 - SVHC: No SVHC (15-Jan-2019)
 - Bulb Size: 2.4mm
 - Dominant Wavelength: 588nm
 - External Depth: 2.8mm
 - External Length / Height: 1.9mm
 - External Width: 3.5mm
 - Forward Current If Max: 20mA
 - Forward Voltage VF Max: 2.5V
 - LED / Lamp Size: 2.4mm
 - LED Type: Standard
 - Lens Colour: Water clear
 - Luminous Intensity @ If Min: 4mcd
 - Luminous Intensity Typ: 15mcd
 - Material: GaAsP/GaP
 - No. of Pins: 2Pins
 - Operating Temperature Max: 85°C
 - Operating Temperature Min: -40°C
 - Operating Temperature Range: -40°C to +85°C
 - PIV Max: 5V
 - Peak Wavelength: 590nm
 - Reverse Leakage Current Max: 10µA
 - Storage Temperature Max: 85°C
 - Storage Temperature Min: -40°C
 - Voltage Vf Typ: 2.1V
