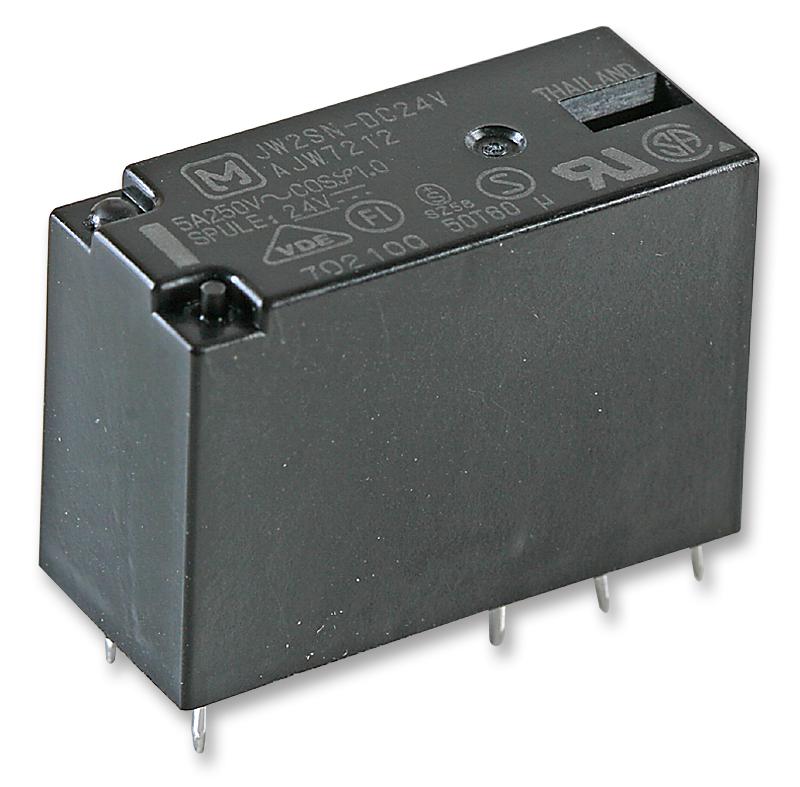

PANASONIC - JW2SN-24V - General Purpose Relay, JW Series, Power, Non Latching, DPDT, 24 VDC, 5 A
- Contact Configuration: DPDT
 - Coil Voltage: 24VDC
 - Contact Current: 5A
 - Product Range: JW Series
 - Relay Mounting: Through Hole
 - Coil Type: Non Latching
 - Contact Voltage VAC: 277VAC
 - Relay Terminals: Solder
 - Contact Voltage VDC: 30VDC
 - Contact Material: Silver Nickel
 - Coil Resistance: 1.1kohm
 - SVHC: No SVHC (07-Jul-2017)
 - Approvals & Standards: CSA, UL, VDE
 - Coil Current: 22mA
 - Coil Voltage VDC Nom: 24V
 - Contact Current AC Max: 5A
 - Contact Current DC Max: 5A
 - Contact Current Max: 5A
 - Contact Resistance: 100mohm
 - Contact Voltage AC Max: 250V
 - Contact Voltage AC Nom: 250V
 - Contact Voltage DC Max: 30V
 - Contact Voltage DC Nom: 30V
 - DC Coil Power: 530mW
 - External Depth: 12.8mm
 - External Height: 20mm
 - External Length / Height: 20mm
 - External Width: 28.6mm
 - IP / NEMA Rating: IP67
 - No. of Mechanical Operations: 106
 - Nom Operating Power: 530mW
 - Operating Temperature Max: 100°C
 - Operating Temperature Min: -40°C
 - Relay Type: Power - General Purpose
 - Release Time: 5ms
 - Weight: 15g
