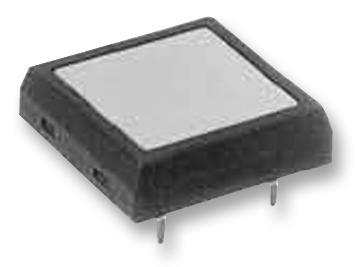

NKK SWITCHES - JF15SP1C - Tactile Switch, JF, Top Actuated, Through Hole, Square Button, 300 gf, 50mA at 24VDC
- Product Range: JF Series
- Actuator Orientation: Top Actuated
- Switch Mounting: Through Hole
- Actuator Style: Square Button
- Actuating Force: 300gf
- Contact Rating: 50mA at 24VDC
- Switch Dimensions (L x W): 17.7mm x 17.7mm
- IP Rating: -
- Illumination: Non Illuminated
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Top
- Actuator / Cap Colour: Red
- Bezel Height: 3mm
- Body Width: 14mm
- Colour: Red
- Contact Configuration: SPST
- Contact Current DC: 50mA
- Contact Current DC Max: 50mA
- Contact Current Max: 50mA
- Contact Resistance Max: 50mohm
- Contact Voltage DC Max: 24V
- Contact Voltage DC Nom: 24V
- External Depth: 17.7mm
- External Width: 17.7mm
- Height Max: 5mm
- Insulation Resistance: 500Mohm
- Insulation Resistance Voltage: 250VDC
- Lead Spacing: 12.7mm
- Lens Depth: 14mm
- No. of Electrical Operations: 500000
- No. of Mechanical Operations: 500000
- Operating Force: 3N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Switch Operation: Off-(On)
- Switch Terminals: Solder
- Travel: 0.4mm
