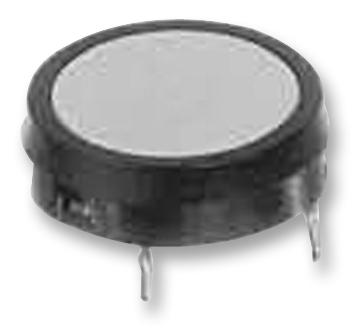

NKK SWITCHES - JF15CP2C - Tactile Switch, JF, Top Actuated, Through Hole, Round Button, 300 gf, 50mA at 24VDC
- Product Range: JF Series
 - Actuator Orientation: Top Actuated
 - Switch Mounting: Through Hole
 - Actuator Style: Round Button
 - Actuating Force: 300gf
 - Contact Rating: 50mA at 24VDC
 - Switch Dimensions (L x W): 17.7mm Dia
 - IP Rating: -
 - Illumination: Non Illuminated
 - SVHC: No SVHC (15-Jan-2019)
 - Actuation Type: Top
 - Actuator / Cap Colour: Red
 - Bezel Diameter: 17.7mm
 - Bezel Height: 3mm
 - Colour: Red
 - Contact Configuration: SPST
 - Contact Current DC: 50mA
 - Contact Current DC Max: 50mA
 - Contact Current Max: 50mA
 - Contact Resistance Max: 50mohm
 - Contact Voltage DC Max: 24V
 - Contact Voltage DC Nom: 24V
 - External Diameter: 14mm
 - Height Max: 5mm
 - Insulation Resistance: 500Mohm
 - Insulation Resistance Voltage: 250VDC
 - Lead Spacing: 12.7mm
 - No. of Electrical Operations: 500000
 - No. of Mechanical Operations: 500000
 - Operating Force: 3N
 - Operating Temperature Max: 85°C
 - Operating Temperature Min: -25°C
 - Switch Operation: Off-(On)
 - Switch Terminals: Solder
 - Travel: 0.4mm
