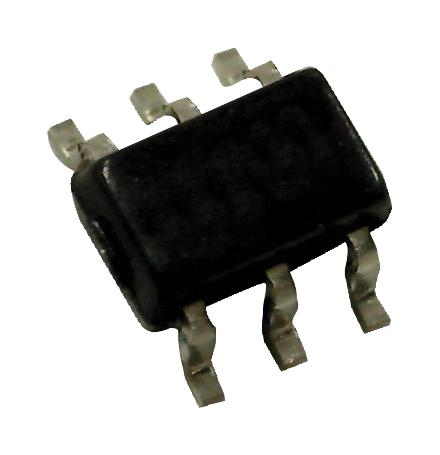

INFINEON - IRLMS2002TRPBF - Power MOSFET, N Channel, 20 V, 6.5 A, 0.03 ohm, SOT-23, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 6.5A
- Drain Source Voltage Vds: 20V
- On Resistance Rds(on): 0.03ohm
- Rds(on) Test Voltage Vgs: 4.5V
- Threshold Voltage Vgs: 1.2V
- Power Dissipation Pd: 2W
- Transistor Case Style: SOT-23
- No. of Pins: 6Pins
- Operating Temperature Max: 150°C
- Product Range: HEXFET Series
- Automotive Qualification Standard: -
- MSL: MSL 2 - 1 year
- SVHC: No SVHC (27-Jun-2018)
