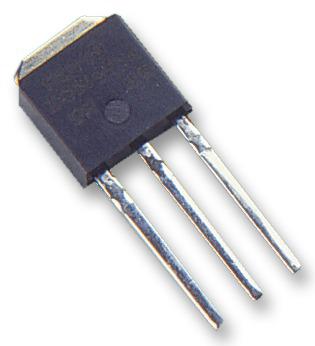

INFINEON - IRFU5305PBF - Power MOSFET, P Channel, 55 V, 22 A, 0.065 ohm, TO-251AA, Through Hole
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 22A
- Drain Source Voltage Vds: -55V
- On Resistance Rds(on): 0.065ohm
- Rds(on) Test Voltage Vgs: -10V
- Threshold Voltage Vgs: -4V
- Power Dissipation Pd: 69W
- Transistor Case Style: TO-251AA
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Alternate Case Style: I-PAK
- Avalanche Single Pulse Energy Eas: 280mJ
- Capacitance Ciss Typ: 1200pF
- Current Iar: 16A
- Current Id Max: -31A
- Current Temperature: 25°C
- Fall Time tf: 63ns
- Full Power Rating Temperature: 25°C
- Junction Temperature Tj Max: 175°C
- Junction Temperature Tj Min: -55°C
- Junction to Case Thermal Resistance A: 1.8°C/W
- Lead Length: 9.65mm
- Lead Spacing: 2.28mm
- No. of Transistors: 1
- On State resistance @ Vgs = 10V: 65mohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Pulse Current Idm: 110A
- Repetitive Avalanche Energy Max: 6.9mJ
- Rise Time: 66ns
