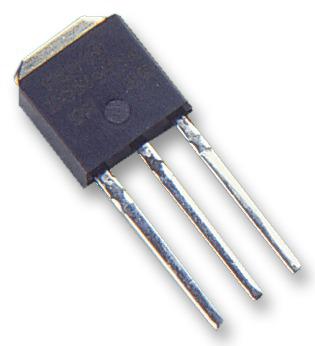

VISHAY - IRFU310PBF - Power MOSFET, N Channel, 400 V, 1.7 A, 3.6 ohm, TO-251AA, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 1.7A
- Drain Source Voltage Vds: 400V
- On Resistance Rds(on): 3.6ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 4V
- Power Dissipation Pd: 25W
- Transistor Case Style: TO-251AA
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- Alternate Case Style: I-PAK
- Current Id Max: 1.7A
- Current Temperature: 25°C
- Fall Time tf: 11ns
- Full Power Rating Temperature: 25°C
- Junction to Case Thermal Resistance A: 5°C/W
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 6A
- Rise Time: 9.9ns
- Termination Type: Through Hole
- Turn Off Time: 21ns
- Turn On Time: 7.9ns
- Voltage Vds: 400V
- Voltage Vds Typ: 400V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
