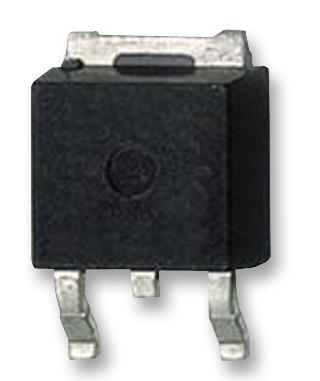

VISHAY - IRFR9310PBF - Power MOSFET, P Channel, 400 V, 1.8 A, 7 ohm, TO-252 (DPAK), Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 1.8A
- Drain Source Voltage Vds: -400V
- On Resistance Rds(on): 7ohm
- Rds(on) Test Voltage Vgs: -10V
- Threshold Voltage Vgs: -4V
- Power Dissipation Pd: 50W
- Transistor Case Style: TO-252
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- Alternate Case Style: D-PAK
- Current Id Max: -1.8A
- Current Temperature: 25°C
- External Depth: 10.5mm
- External Length / Height: 2.55mm
- External Width: 6.8mm
- Full Power Rating Temperature: 25°C
- Junction to Case Thermal Resistance A: 2.5°C/W
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 7.2A
- Termination Type: Surface Mount Device
- Voltage Vds Typ: -400V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: -10V
