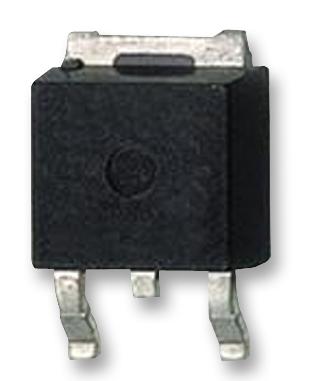

VISHAY - IRFR9014PBF - Power MOSFET, P Channel, 60 V, 5.1 A, 0.5 ohm, TO-252 (DPAK), Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 5.1A
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 0.5ohm
- Rds(on) Test Voltage Vgs: -10V
- Threshold Voltage Vgs: -4V
- Power Dissipation Pd: 25W
- Transistor Case Style: TO-252
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- Alternate Case Style: D-PAK
- Current Id Max: -5.1A
- Current Temperature: 25°C
- External Depth: 10.5mm
- External Length / Height: 2.55mm
- External Width: 6.8mm
- Full Power Rating Temperature: 25°C
- Junction to Case Thermal Resistance A: 5°C/W
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 20A
- SMD Marking: IRFR9014
- Termination Type: Surface Mount Device
- Voltage Vds Typ: -60V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: -10V
