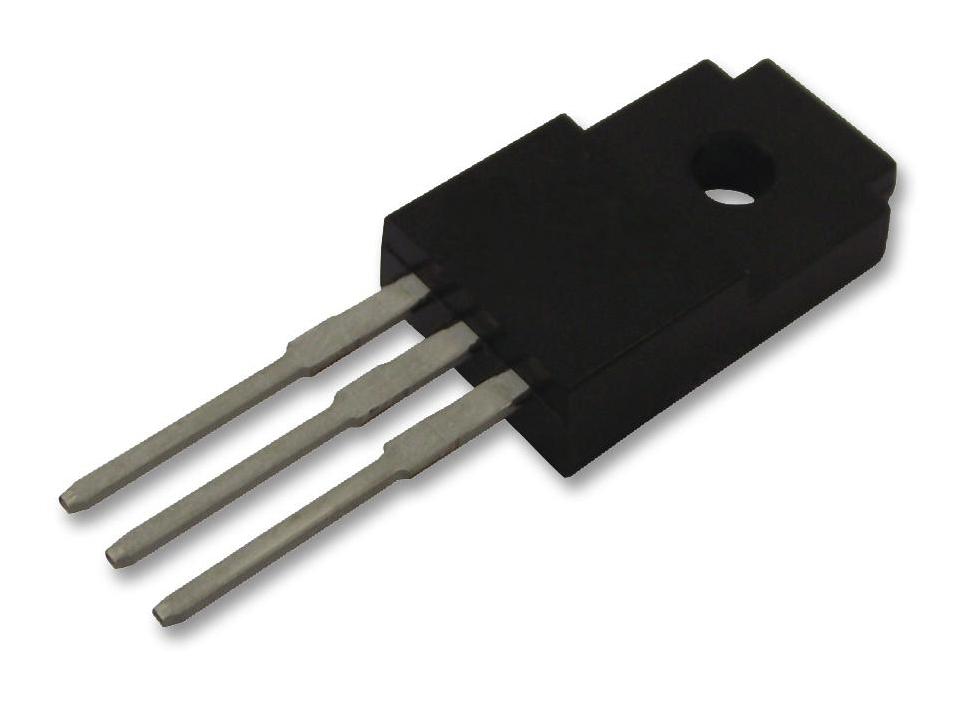

IRFI540NPBF MOSFET, N, 100V, 20A, TO-220FP INFINEON

INFINEONUGS :IRFI540NPBF Code de commande:8648948

Prix:
Prix ​​promotionnel€3,22

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (344 unité)

Documents et téléchargements

description

INFINEON - IRFI540NPBF - Power MOSFET, N Channel, 100 V, 20 A, 0.052 ohm, TO-220FP, Through Hole

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 20A
  • Drain Source Voltage Vds: 100V
  • On Resistance Rds(on): 0.052ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 4V
  • Power Dissipation Pd: 42W
  • Transistor Case Style: TO-220FP
  • No. of Pins: 3Pins
  • Operating Temperature Max: 175°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • Current Id Max: 20A
  • Current Temperature: 25°C
  • Full Power Rating Temperature: 25°C
  • Isolation Voltage: 2.5kV
  • Junction to Case Thermal Resistance A: 2.8°C/W
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +175°C
  • Pulse Current Idm: 110A
  • Termination Type: Through Hole
  • Voltage Vds Typ: 100V
  • Voltage Vgs Max: 4V
  • Voltage Vgs Rds on Measurement: 10V
