IRFD9024PBF MOSFET, P, Dil Vishay

VISHAYUGS :IRFD9024PBF Code de commande:9103228

Prix:
Prix ​​promotionnel€2,68

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1191 unité)

Documents et téléchargements

description

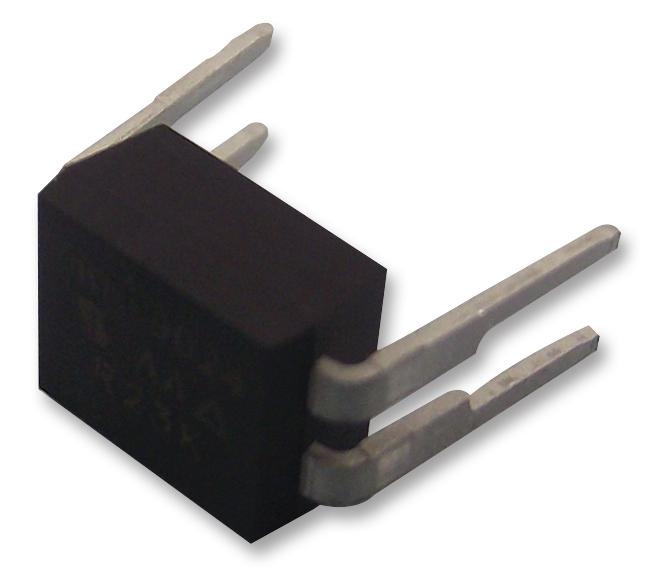

VISHAY - IRFD9024PBF - Power MOSFET, P Channel, 60 V, 1.6 A, 0.28 ohm, DIP, Through Hole

  • Transistor Polarity: P Channel
  • Continuous Drain Current Id: 1.6A
  • Drain Source Voltage Vds: 60V
  • On Resistance Rds(on): 0.28ohm
  • Rds(on) Test Voltage Vgs: -10V
  • Threshold Voltage Vgs: -4V
  • Power Dissipation Pd: 1.3W
  • Transistor Case Style: DIP
  • No. of Pins: 4Pins
  • Operating Temperature Max: 175°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • Current Id Max: -1.6A
  • Current Temperature: 25°C
  • Device Marking: IRFD9024PBF
  • Full Power Rating Temperature: 25°C
  • Lead Spacing: 2.54mm
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +175°C
  • Pulse Current Idm: 13A
  • Row Pitch: 7.62mm
  • Voltage Vds Typ: -60V
  • Voltage Vgs Max: 20V
  • Voltage Vgs Rds on Measurement: -10V
