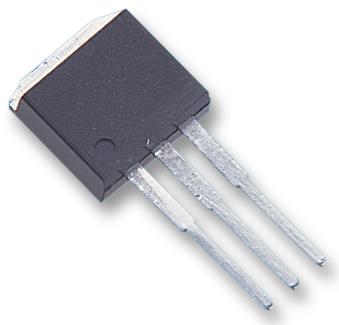

INFINEON - IRF9540NLPBF - Power MOSFET, P Channel, 100 V, 23 A, 0.117 ohm, TO-262, Through Hole
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 23A
- Drain Source Voltage Vds: -100V
- On Resistance Rds(on): 0.117ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 4V
- Power Dissipation Pd: 3.1W
- Transistor Case Style: TO-262
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Avalanche Single Pulse Energy Eas: 430mJ
- Capacitance Ciss Typ: 1300pF
- Current Iar: 11A
- Current Id Max: -23A
- Fall Time tf: 51ns
- Gfs Min: 5.3mA/V
- On State Resistance Max: 117mohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- P Channel Gate Charge: 97nC
- Pulse Current Idm: 76A
- Rise Time: 67ns
- Termination Type: Through Hole
- Voltage Vds: 100V
- Voltage Vds Typ: 100V
- Voltage Vgs Max: 25V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 4V
- Voltage Vgs th Min: 2V
