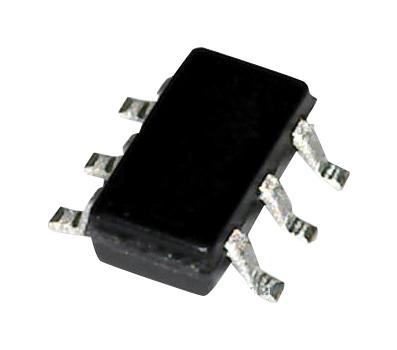

INFINEON - IRF5801TRPBF - Power MOSFET, N Channel, 200 V, 600 mA, 2.2 ohm, TSOP, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 600mA
- Drain Source Voltage Vds: 200V
- On Resistance Rds(on): 2.2ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 5.5V
- Power Dissipation Pd: 2W
- Transistor Case Style: TSOP
- No. of Pins: 6Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Application Code: SMPS
- Cont Current Id @ 25°C: 600mA
- Cont Current Id @ 70°C: 0.48
- Current Id Max: 600mA
- Junction to Case Thermal Resistance A: 62.5°C/W
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 4.8A
- Termination Type: Surface Mount Device
- Voltage Vds: 200V
- Voltage Vds Typ: 200V
- Voltage Vgs Max: 30V
- Voltage Vgs Rds on Measurement: 10V
