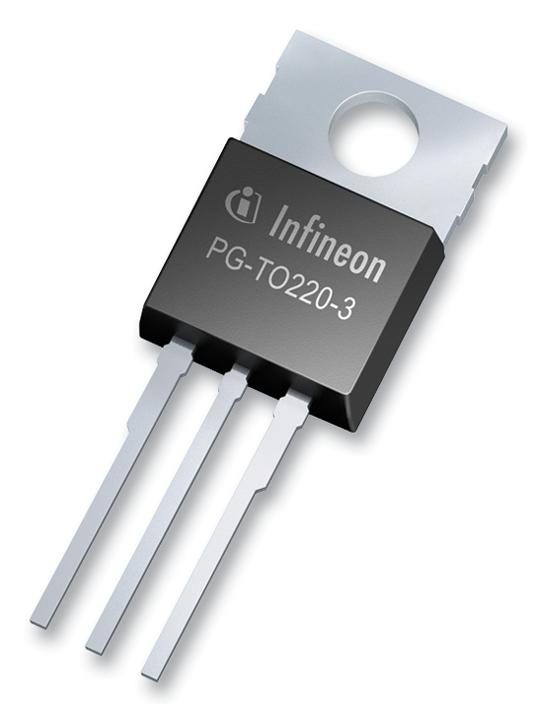

INFINEON - IPP032N06N3GXKSA1 - Power MOSFET, N Channel, 60 V, 120 A, 0.0026 ohm, TO-220, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 120A
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 0.0026ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3V
- Power Dissipation Pd: 188W
- Transistor Case Style: TO-220
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
