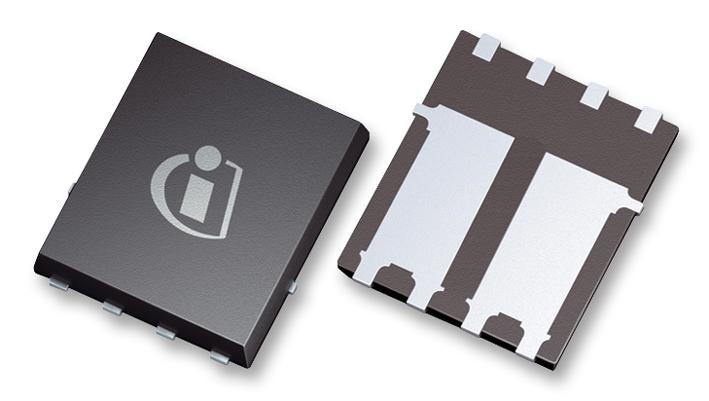

INFINEON - IPG20N06S4L26AATMA1 - Dual MOSFET, N Channel, 60 V, 20 A, 0.021 ohm, TDSON, Surface Mount
- Transistor Polarity: Dual N Channel
- Continuous Drain Current Id: 20A
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 0.021ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 1.7V
- Power Dissipation Pd: 33W
- Transistor Case Style: TDSON
- No. of Pins: 8Pins
- Operating Temperature Max: 175°C
- Product Range: OptiMOS T2 Series
- Automotive Qualification Standard: AEC-Q101
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
