IPD80R2K7C3AATMA1 MOSFET, AEC-Q101, N-Ch, 800V, 2A, 42W INFINEON

INFINEONUGS :IPD80R2K7C3AATMA1 Code de commande:3155114

Prix:
Prix ​​promotionnel€3,29

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (577 unité)

description

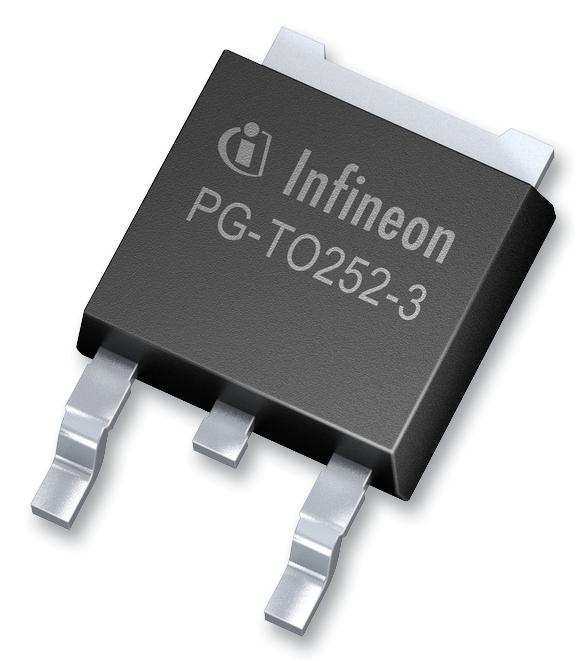

INFINEON - IPD80R2K7C3AATMA1 - Power MOSFET, N Channel, 800 V, 2 A, 2.4 ohm, TO-252 (DPAK), Surface Mount

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 2A
  • Drain Source Voltage Vds: 800V
  • On Resistance Rds(on): 2.4ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 3V
  • Power Dissipation Pd: 42W
  • Transistor Case Style: TO-252
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: CoolMOS Series
  • Automotive Qualification Standard: AEC-Q101
  • SVHC: No SVHC (15-Jan-2019)
