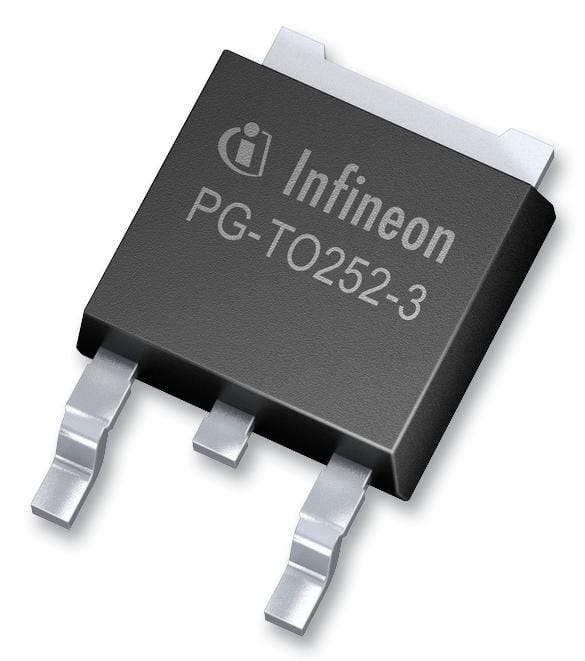

IPD33CN10NGATMA1 MOSFET, N Ch, 27A, 100V, Pg-TO252-3 INFINEON

INFINEONUGS :IPD33CN10NGATMA1 Code de commande:1775589

Prix:
Prix ​​promotionnel€2,72

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (216 unité)

Documents et téléchargements

description

INFINEON - IPD33CN10NGATMA1 - Power MOSFET, N Channel, 100 V, 27 A, 0.025 ohm, TO-252 (DPAK), Surface Mount

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 27A
  • Drain Source Voltage Vds: 100V
  • On Resistance Rds(on): 0.025ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 3V
  • Power Dissipation Pd: 58W
  • Transistor Case Style: TO-252
  • No. of Pins: 3Pins
  • Operating Temperature Max: 175°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Current Id Max: 27A
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +175°C
  • Transistor Type: Power MOSFET
  • Voltage Vgs Max: 20V
