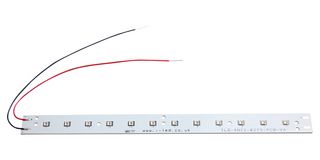

ILS-XP12-S260-0280-SC201-W2. - UV Emitter Module, 12 Chip, 270 to 270 nm, 27.3W, 130° (+/- 65°), Rectangular PCB, M3 Heatsink Mount - INTELLIGENT LED SOLUTIONS
Survolez l'image pour zoomer Cliquez sur l'image pour zoomer
ILS-XP12-S260-0280-SC201-W2. - UV Emitter Module, 12 Chip, 270 to 270 nm, 27.3W, 130° (+/- 65°), Rectangular PCB, M3 Heatsink Mount - INTELLIGENT LED SOLUTIONS

ILS-XP12-S260-0280-SC201-W2. - UV Emitter Module, 12 Chip, 270 to 270 nm, 27.3W, 130° (+/- 65°), Rectangular PCB, M3 Heatsink Mount - INTELLIGENT LED SOLUTIONS

INTELLIGENT LED SOLUTIONSUGS :ILS-XP12-S260-0280-SC201-W2. Code de commande:3594545
Prix:
€1.928,52

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documenten en downloads

description

  • Forward Current per Chip: 350mA
  • Forward Voltage Range: 20V to 30V
  • Minimum Radiometric Power: 300mW
  • Operating Temperature Max: 60°C
  • Peak Wavelength: 260 to 270nm
  • Product Range: UV N3535 12 VIOLET Strip Series
  • Radiance Angle: ± 65° (130°)
  • Typical Wattage: 27.3W
  • UV Emitter Module Leads: 200mm Red & Black
  • UV Emitter Module Mounting: Strip PCB, M3 Holes - Heatsink Mount
  • UV Emitter Module Type: 12 Chip UV Module
