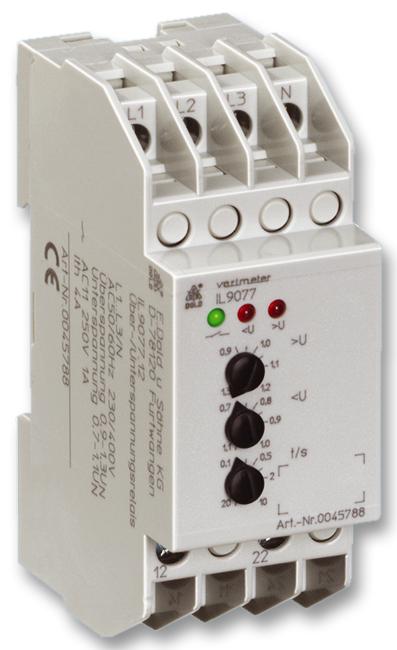

DOLD - IL 9077.12 3N AC 400/230V 0,1 - 20S - Voltage Monitoring Relay, IL 9077, DPDT, 3 A, DIN Rail, 230 VAC, Screw
- Product Range: IL 9077 Series
- Contact Configuration: DPDT
- Contact Current: 3A
- Relay Mounting: DIN Rail
- Contact Voltage VAC: 230VAC
- Relay Terminals: Screw
- Contact Voltage VDC: -
- Supply Voltage Max: 400VAC
- Power Consumption: -
- SVHC: No SVHC (15-Jan-2018)
- Adjustment Type: Rotary
- Approval Bodies: CE, EN, IEC, VDE
- Coil Voltage VAC Nom: 230V
- Contact Current AC Max: 3A
- Contact Voltage AC Max: 230V
- Control Voltage Type: AC
- Delay Time Range: 0.1s to 20s
- External Depth: 59mm
- External Length / Height: 35mm
- External Width: 90mm
- Height: 35mm
- Nom Input Voltage: 400VAC
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Switch Current Max: 4A
- Switching Current Max: 4A
- Type: 0045788
