description

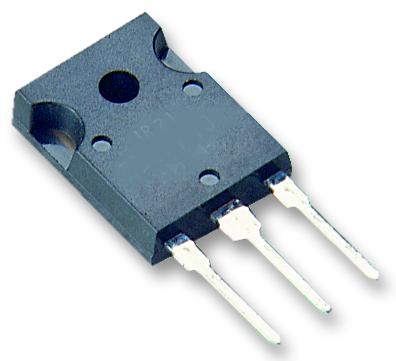

INFINEON - IKW75N60TFKSA1 - IGBT, General Purpose, 80 A, 2 V, 428 W, 600 V, TO-247, 3 Pins
- DC Collector Current: 80A
- Collector Emitter Saturation Voltage Vce(on): 2V
- Power Dissipation Pd: 428W
- Collector Emitter Voltage V(br)ceo: 600V
- Transistor Case Style: TO-247
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Current Ic Continuous a Max: 75A
- No. of Transistors: 1
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +175°C
- Power Dissipation Max: 428W
- Termination Type: Through Hole
- Transistor Polarity: N Channel
- Transistor Type: IGBT
- Voltage Vces: 600V
