description

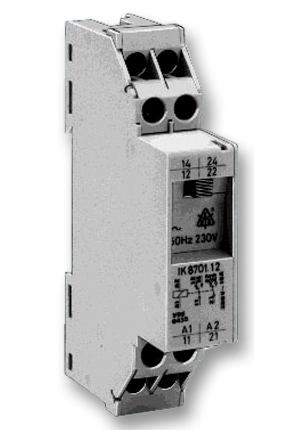

DOLD - IK 8701.12 AC 50HZ 230V - General Purpose Relay, IK 8701 Series, Interface, DPDT, 230 VAC, 16 A
- Contact Configuration: DPDT
- Coil Voltage: 230VAC
- Contact Current: 16A
- Product Range: IK 8701 Series
- Relay Mounting: DIN Rail
- Coil Type: AC
- Contact Voltage VAC: 230VAC
- Relay Terminals: Screw
- Contact Voltage VDC: -
- Contact Material: -
- Coil Resistance: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: EN, IEC
- Coil Voltage VAC Nom: 230V
- Contact Current AC Max: 16A
- Contact Current Max: 16A
- Contact Voltage AC Max: 400V
- Contact Voltage AC Nom: 230V
- Current Rating: 16A
- External Depth: 58mm
- External Height: 89mm
- External Length / Height: 89mm
- External Width: 17.5mm
- Nom Operating Power: 1.8W
- Operating Temperature Max: -45°C
- Operating Temperature Min: -20°C
- Relay Type: Interface
- Type: 0033896
