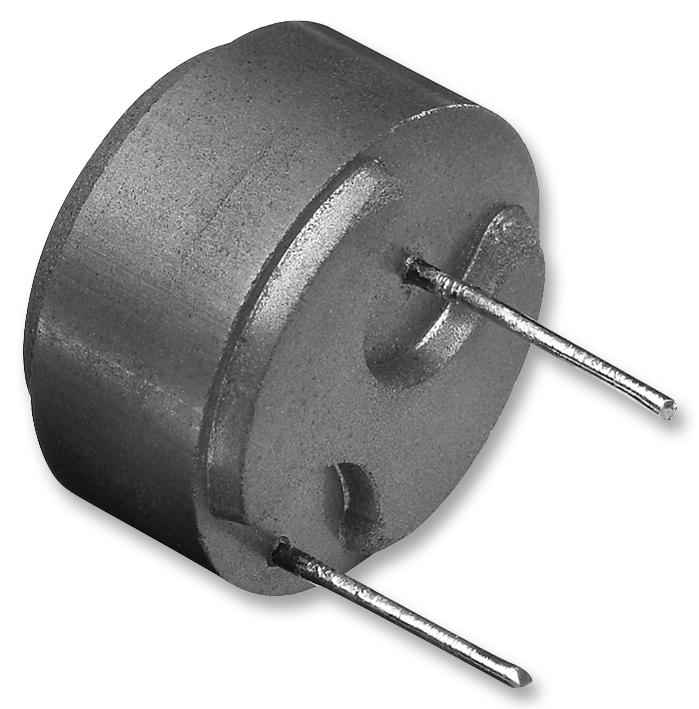

IHTH1125MZEB101M5A Inductor, 100UH, 20%, 9.25A Vishay

VISHAYUGS :IHTH1125MZEB101M5A Code de commande:1764427

Prix:
Prix ​​promotionnel€19,44

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 4 produits disponibles

Documents et téléchargements

description

VISHAY - IHTH1125MZEB101M5A - Inductor, IHTH-1125MZ-5A Series, 100 µH, 9.2 A, 11 A, 0.032 ohm, ± 20%

  • Product Range: IHTH-1125MZ-5A Series
  • Inductance: 100µH
  • RMS Current (Irms): 9.2A
  • Saturation Current (Isat): 11A
  • DC Resistance Max: 0.032ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (27-Jun-2018)
  • Body Diameter: 29.95mm
  • Core Material: Iron Powder
  • DC Current Rating: 8.4A
  • External Length / Height: 12.7mm
  • Inductance Measurement Frequency: 100kHz
  • Inductor Case Style: Radial Leaded
  • Inductor Type: High Current
  • Lead Diameter: 1.37mm
  • Lead Length: 4.19mm
  • Lead Spacing: 16.58mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Resonant Frequency: 1MHz
