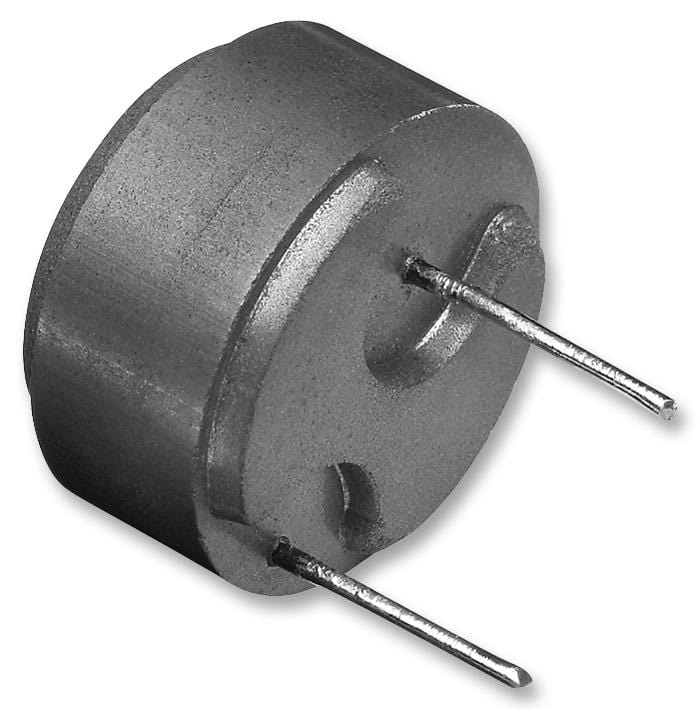

VISHAY - IHTH0750JZEB100M5A - Inductor, IHTH-0750JZ-5A Series, 10 µH, 17 A, 18 A, 7700 µohm, ± 20%
- Product Range: IHTH-0750JZ-5A Series
- Inductance: 10µH
- RMS Current (Irms): 17A
- Saturation Current (Isat): 18A
- DC Resistance Max: 0.0077ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Body Diameter: 20.47mm
- DC Current Rating: 13A
- External Length / Height: 9.52mm
- Inductance Measurement Frequency: 100kHz
- Inductor Case Style: Radial Leaded
- Inductor Type: High Current
- Lead Diameter: 1.32mm
- Lead Length: 4.19mm
- Lead Spacing: 10.84mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Resonant Frequency: 1MHz
