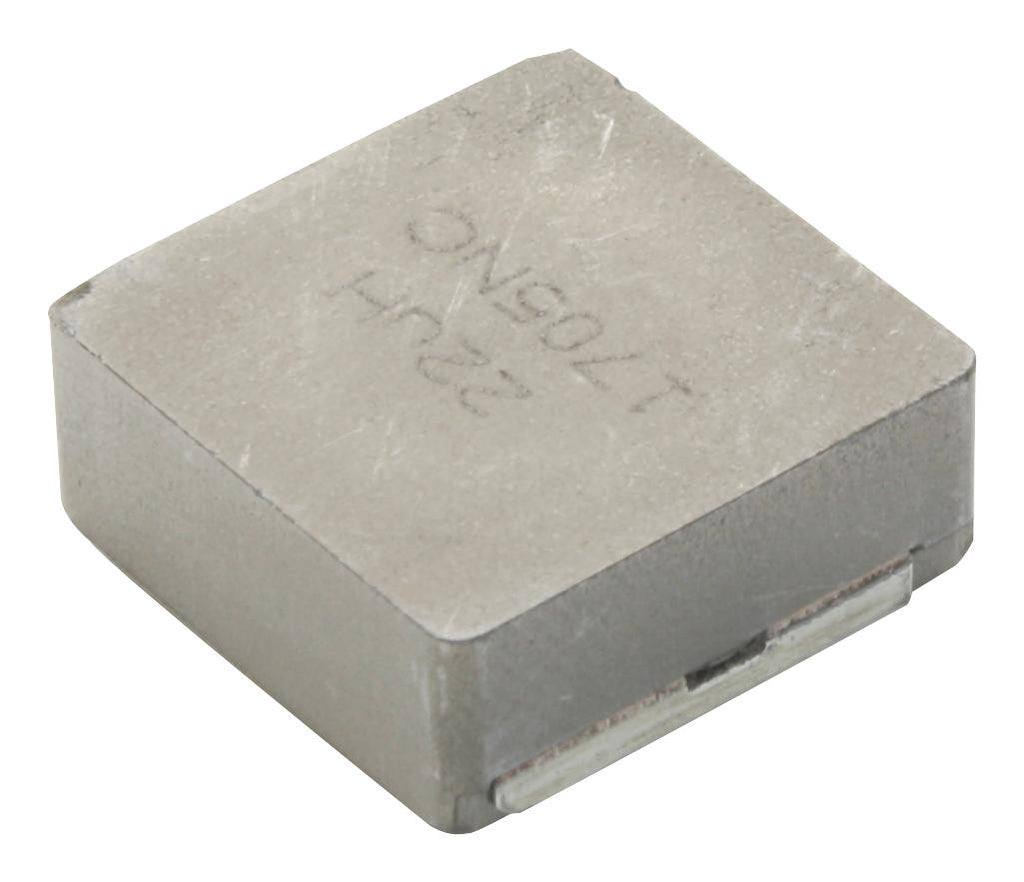

VISHAY - IHLP6767GZER5R6M01 - Power Inductor (SMD), 5.6 µH, 21 A, Shielded, 40 A, IHLP-6767GZ-01
- Inductance: 5.6µH
- RMS Current (Irms): 21A
- Inductor Construction: Shielded
- Saturation Current (Isat): 40A
- Product Range: IHLP-6767GZ-01 Series
- Power Inductor Case: 17.15mm x 17.15mm x 7mm
- DC Resistance Max: 0.00705ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- External Depth: 17.15mm
- External Length / Height: 7mm
- External Width: 17.15mm
- Inductor Type: High Current
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
