description

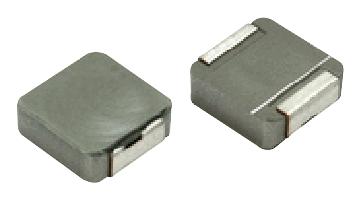

VISHAY - IHLP3232CZER1R0M11 - Power Inductor (SMD), 1 µH, 16 A, Shielded, 14.8 A, IHLP-3232CZ-11
- Inductance: 1µH
- RMS Current (Irms): 16A
- Inductor Construction: Shielded
- Saturation Current (Isat): 14.8A
- Product Range: IHLP-3232CZ-11 Series
- Power Inductor Case: 8.64mm x 8.18mm x 3mm
- DC Resistance Max: 0.00649ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- No. of Pins: 2Pins
