IHLP2525CZER4R7M11 Inductor, 4.7UH, 4A, 20% Vishay

VISHAYUGS :IHLP2525CZER4R7M11 Code de commande:1741364

Prix:
Prix ​​promotionnel€1,53

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2816 unité)

description

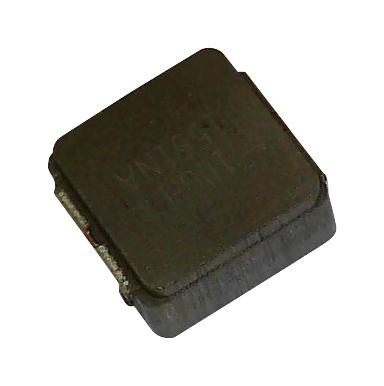

VISHAY - IHLP2525CZER4R7M11 - Power Inductor (SMD), 4.7 µH, 6 A, Shielded, 4 A, IHLP-2525CZ-11

  • Inductance: 4.7µH
  • RMS Current (Irms): 6A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 4A
  • Product Range: IHLP-2525CZ-11 Series
  • Power Inductor Case: 6.86mm x 6.47mm x 3mm
  • DC Resistance Max: 0.0334ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (27-Jun-2018)
  • External Depth: 6.47mm
  • External Length / Height: 0.118mm
  • External Width: 6.86mm
  • Inductor Type: High Current
  • No. of Pins: 2Pins
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
