IHLP2525AHER1R5M01 Inductor, 1.5UH, 11.5A, 20% Vishay

VISHAYUGS :IHLP2525AHER1R5M01 Code de commande:1741340

Prix:
Prix ​​promotionnel€1,96

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (6018 unité)

description

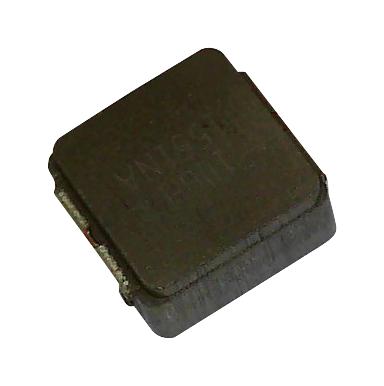

VISHAY - IHLP2525AHER1R5M01 - Power Inductor (SMD), 1.5 µH, 4 A, Shielded, 11.5 A, IHLP-2525AH-01

  • Inductance: 1.5µH
  • RMS Current (Irms): 4A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 11.5A
  • Product Range: IHLP-2525AH-01 Series
  • Power Inductor Case: 6.86mm x 6.47mm x 1.8mm
  • DC Resistance Max: 0.034ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (27-Jun-2018)
  • External Depth: 6.47mm
  • External Length / Height: 1.8mm
  • External Width: 6.86mm
  • Inductor Type: High Current
  • No. of Pins: 2Pins
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
