IHLP2020CZER220M11 Inductor, 22UH, 1.7A, 20% Vishay

VISHAYUGS :IHLP2020CZER220M11 Code de commande:1741331

Prix:
Prix ​​promotionnel€1,74

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4627 unité)

description

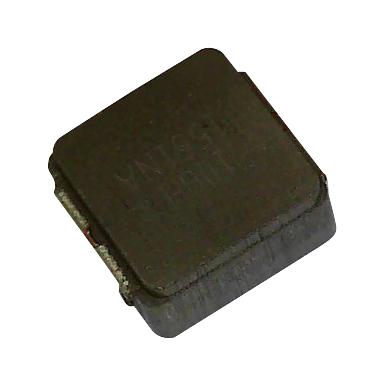

VISHAY - IHLP2020CZER220M11 - Power Inductor (SMD), 22 µH, 1.9 A, Shielded, 1.7 A, IHLP-2020CZ-11

  • Inductance: 22µH
  • RMS Current (Irms): 1.9A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 1.7A
  • Product Range: IHLP-2020CZ-11 Series
  • Power Inductor Case: 5.49mm x 5.18mm x 3mm
  • DC Resistance Max: 0.27ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (27-Jun-2018)
  • External Depth: 5.18mm
  • External Length / Height: 3mm
  • External Width: 5.49mm
  • Inductor Type: High Current
  • No. of Pins: 2Pins
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
