IHLP2020BZERR33M11 Inductor, 0.33UH, 7.5A, 20% Vishay

VISHAYUGS :IHLP2020BZERR33M11 Code de commande:1741309

Prix:
Prix ​​promotionnel€1,77

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (15 unité)

description

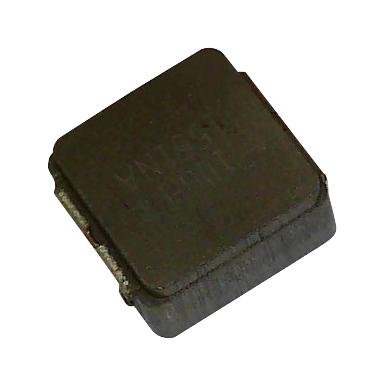

VISHAY - IHLP2020BZERR33M11 - Power Inductor (SMD), 330 nH, 13 A, Shielded, 7.5 A, IHLP-2020BZ-11

  • Inductance: 330nH
  • RMS Current (Irms): 13A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 7.5A
  • Product Range: IHLP-2020BZ-11 Series
  • Power Inductor Case: 5.49mm x 5.18mm x 2mm
  • DC Resistance Max: 0.0059ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (27-Jun-2018)
  • External Depth: 5.18mm
  • External Length / Height: 2mm
  • External Width: 5.49mm
  • Inductor Type: High Current
  • No. of Pins: 2Pins
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
