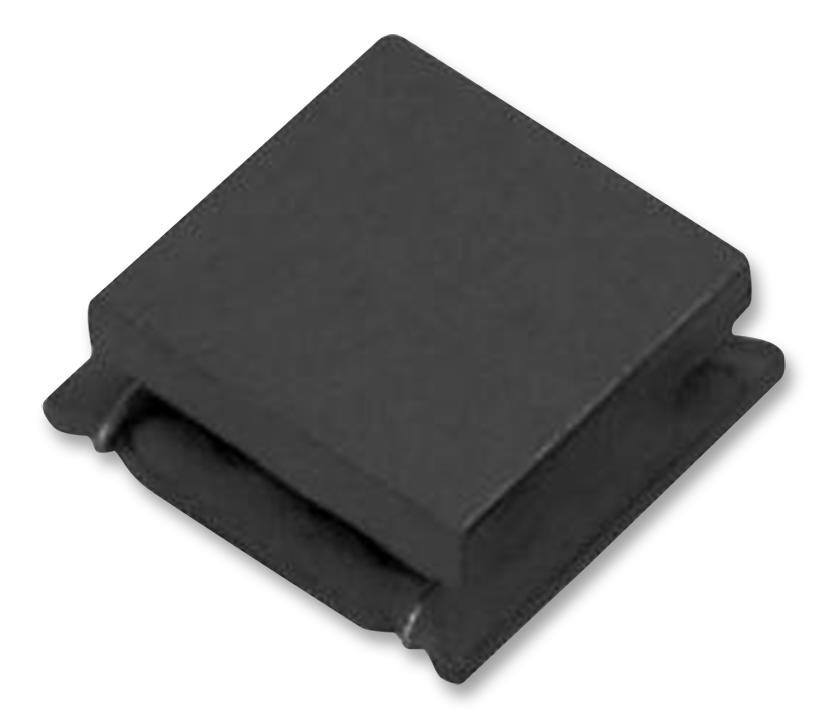

VISHAY - IFSC1111AZER330M01 - Power Inductor (SMD), 33 µH, 400 mA, Shielded, 300 mA, IFSC-1111AZ-01
- Inductance: 33µH
- RMS Current (Irms): 400mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 300mA
- Product Range: IFSC-1111AZ-01 Series
- Power Inductor Case: 2.9mm x 2.9mm x 1mm
- DC Resistance Max: 1.25ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
