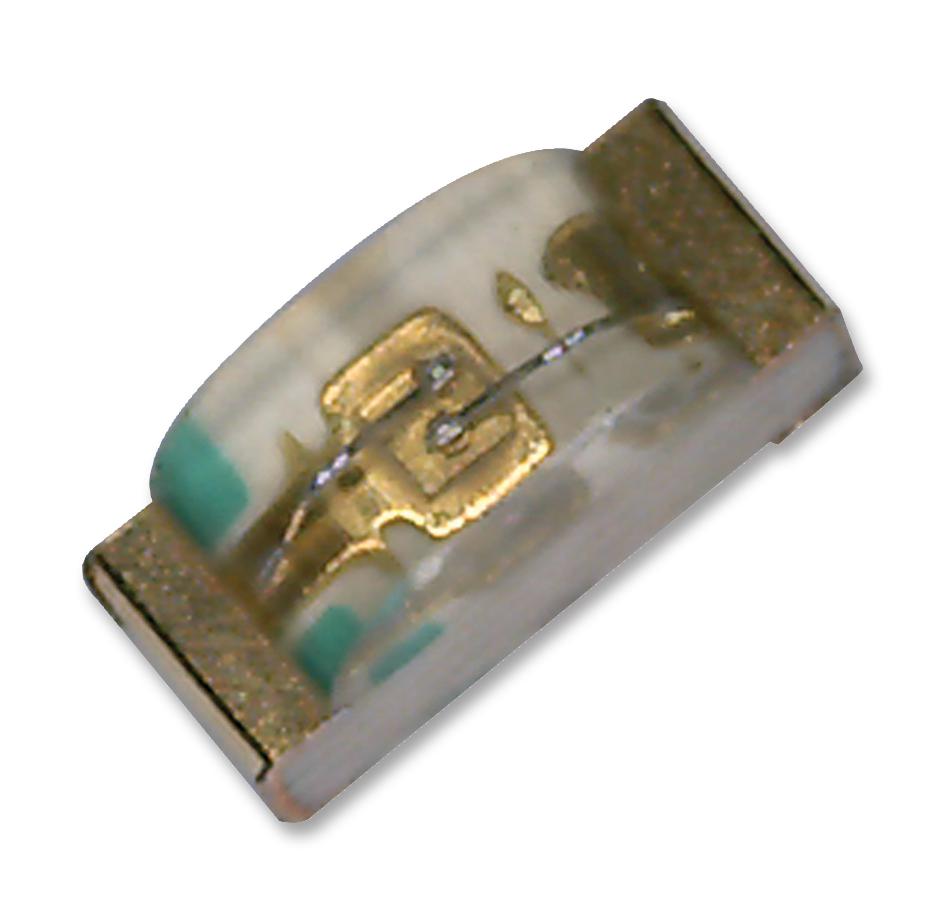

BROADCOM - HSMQ-C120 - LED, Green, SMD, 0603, 20 mA, 3.4 V, 520 nm
- LED Colour: Green
 - LED Mounting: SMD
 - LED Case Size: 0603
 - Forward Current If: 20mA
 - Forward Voltage: 3.4V
 - Wavelength Typ: 520nm
 - Luminous Intensity: 145mcd
 - Viewing Angle: 155°
 - Lens Shape: Dome
 - Product Range: -
 - Automotive Qualification Standard: -
 - MSL: MSL 2A - 4 weeks
 - SVHC: No SVHC (15-Jan-2018)
 - Bulb Size: 1.2mm
 - Dominant Wavelength: 527nm
 - External Depth: 0.6mm
 - External Length / Height: 1mm
 - External Width: 1.6mm
 - Forward Current If Max: 20mA
 - Forward Voltage VF Max: 3.9V
 - LED / Lamp Size: 1.2mm x 0.6mm
 - LED Type: Standard
 - Luminous Intensity @ If Min: 45mcd
 - Luminous Intensity Typ: 145mcd
 - Mounting Orientation: Top
 - No. of Pins: 2Pins
 - Operating Temperature Max: 85°C
 - Operating Temperature Min: -30°C
 - Operating Temperature Range: -30°C to +85°C
 - Peak Forward Current: 20mA
 - Peak Wavelength: 520nm
 - Reverse Protection Voltage: 5V
 - Storage Temperature Max: 85°C
 - Storage Temperature Min: -40°C
 - Voltage Vf Typ: 3.4V
