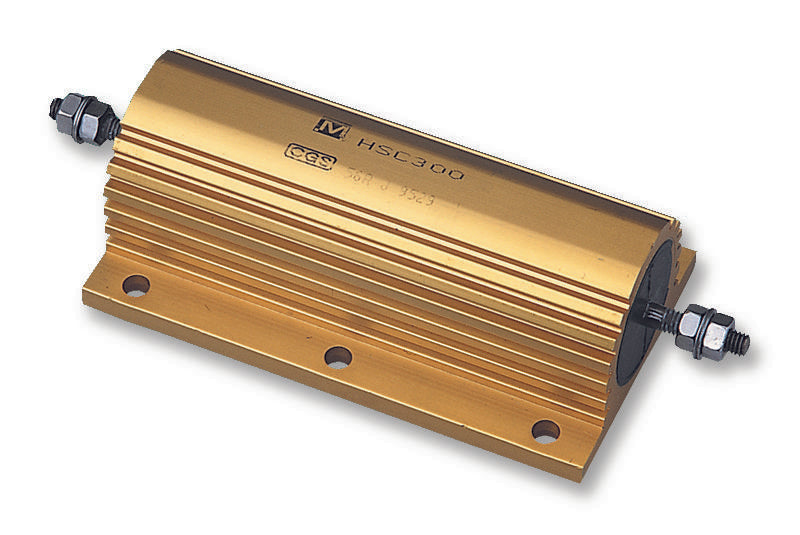

HSC25010RJ Resistor, 250W, 10R, 5% CGS - Te Connectivity

CGS - TE CONNECTIVITYUGS :HSC25010RJ Code de commande:1619346

Prix:
Prix ​​promotionnel€94,50

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seul 1 produit disponible

Documents et téléchargements

description

CGS - TE CONNECTIVITY - HSC25010RJ - Resistor, Axial Leaded, 10 ohm, HS Series, 250 W, ± 5%, Threaded Stud, 2.2 kV

  • Resistance: 10ohm
  • Product Range: HS Series
  • Power Rating: 250W
  • Resistance Tolerance: ± 5%
  • Resistor Terminals: Threaded Stud
  • Voltage Rating: 2.2kV
  • Resistor Element Material: Wirewound
  • Temperature Coefficient: ± 50ppm/°C
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 73mm
  • External Length / Height: 45mm
  • External Width: 109mm
  • Fixing Centres LxW: 44.5x57.6
  • Fixing Hole Diameter: 5.3mm
  • Insulation Resistance: 10000Mohm
  • Length: 163mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 250°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Range: -25°C to +250°C
  • Resistor Case Style: Axial Leaded
  • Resistor Mounting: Panel
